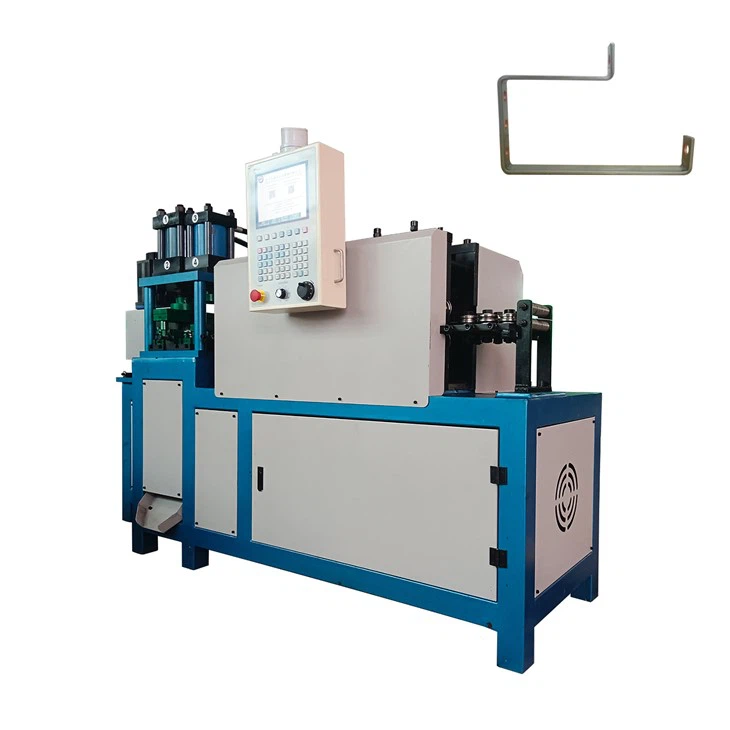

Tsis siv neeg CNC tiaj tus hlau Busbar Sawb dabtsi yog khoov Thiab sib sau tshuab Hose Clamp Ua Tshuab Nrog Punching

Product Description

Servo motor feeding Hydraulic hlau dabtsi yog khoov tshuab yog siv los ua hom 2d lossis 3d hlau cov ntaub ntawv.





Nrog rau lub zog tsav hydraulic, lub tshuab no tuaj yeem khoov cov xov hlau rau hauv 3d cov ntaub ntawv hauv siab precision.



Lub tshuab no yog tsim los cuam tshuam nrog cov hlau tsis muaj steel, galvanized steel sawb / Alumn sawb, uas muaj cov haujlwm zoo sib xws ntawm punch nrog peb lub tog raj kheej. Ua qhov nyuaj nrog ntau lub tog raj kheej. Qhov siab tshaj plaws strip dav yuav yog 50mm thiab max. thickness tuaj yeem yog 4mm. feeding-ncaj-pav punch-txiav-qhov punch-engrave-ntau-action dabtsi yog khoov-ntug sharpen-tiav khoom.

Cov cwj pwm tseem ceeb

Lwm yam cwj pwm

Qhov Chaw Keeb Kwm

Henan, Suav



Tshuab Hom

Clamp dabtsi yog khoov tshuab



Qhov hnyav (KG)

3000



Video tawm-kev soj ntsuam

Muab



Machinery Test Report

Muab



Hom kev lag luam

Yam khoom



Warranty ntawm cov khoom tseem ceeb

1 xyoo



Core Components

PLC, Cav, Bearing, Gearbox, Tsav, Lub Nkoj Siab, Iav, Twj



Warranty

1 xyoo



Cov Ntsiab Lus Muag

Tus nqi sib tw



Siv Tau Kev Lag Luam

Cov khw muag khoom siv tsev, chaw tsim khoom, lwm yam



Qhov chaw Showroom

Tsis muaj



Hom Lub Npe

WADJAY



Qhov xwm txheej

Tshiab



Lub npe

CNC tshuab



Kev siv

Flat Bar / Flat Sawb / Yeeb Nkab Clamp



Hom Tsav

iav



Txoj Kev Rack

Lub zog siab qhia ncej ncej gantry kab rov tav ncej



Chaw nres tsheb Pitch

250 hli



Txoj kab uas hla ntawm Shafts

Dia.60mm, 42CrMo (quenching thiab tempering)



Khoom siv ntawm Roller

Cr12, Hardness: HRC58-60 degree



Main Tsav Tsav

37KW (Servo Tsav)



Hom 1

Yeeb Nkab Clamp Ua Tshuab



Hom 2

Flat strip dabtsi yog khoov tshuab

Technical Parameter:

Qauv	GT-CY -202	GT- CY -203	GT- CY -204	GT- CY -302	GT- CY -402
Lub tiaj tiaj (W*T)	20 * 2 hli	20 * 3 hli	20 * 4 hli	30 * 2 hli	40 * 2.5 hli
Pub ntev	300 hli	300 hli	300 hli	300 hli	300 hli
Tus nqi ntau lawm	25-30pcs / min	15-20pcs/min	10-15pcs/min	10-15 pcs/min	8-10 pcs/min
Lub cev muaj zog	5,5 kwv	5,5 kwv	7.5 kwm	7.5 kwm	7.5 kwm
Qhov Loj (L * W * H)	190 X 127 X 185 cm	190 X 127 X 185 cm	190 X 127 X 185 cm	190 X 127 X 185 cm	190 X 127 X 185 cm
Qhov hnyav (KG)	12 00.0KG	12 00.0KG	12 00.0KG	13 00.0KG	13 00.0KG
